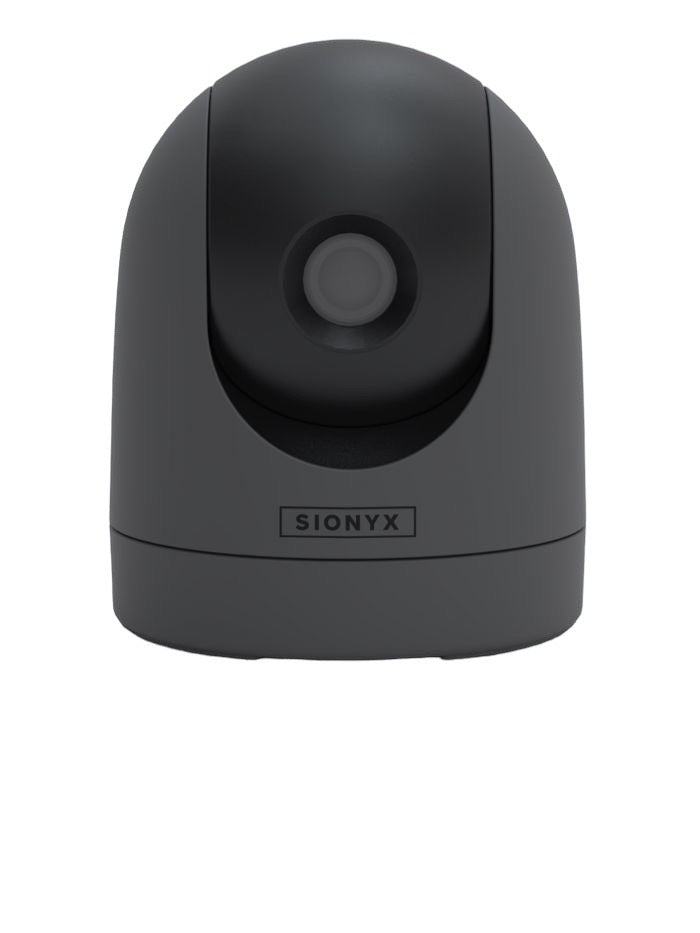

Sionyx CRV-500C Nightwave Low Light Fixed Mount Camera Gray Housing

Sionyx CRV-500C Nightwave Low Light Fixed Mount Camera Gray Housing

Sionyx Nightwave Ultra Low-light Marine Camera - Gray Hosuing

Model: C014700

• <1 millilux moonless starlight night vision


• 44 degree field of view


• Rugged and water-resistant (IP67 rated)


• Connect directly to a major brand MFD


• Flexible installation - Permanently mount to a flat surface, ball up or down, using the included mounting template and hardware or Temporarily mount with a 1/4"-20 mount interface for use with standard mounts


• 12Vdc power (fused)


• NTSC/PAL Analog video connection (SMA, BNC, or RCA)


• Manual vertical tilt adjustment

Nightwave is an ultra low-light marine camera built around SIONYX’s patented Black Silicon BSI CMOS sensor. It allows all levels of mariners to easily spot obstacles and debris in moonless starlight without white light or expensive thermal cameras — navigating safely, avoiding collisions, and maximizing time on the water.

Featuring <1 millilux moonless starlight sensitivity, with Nightwave you will see well beyond human eyesight and detect man-sized objects at 150 meters. The 44 field of view increases situational awareness so you can spot unexpected markers, vessels, land formations and more. IP67 rated, submersible to 3 ft for 30 minutes, you can safely use Nightwave in inclement weather conditions.

With flexible mounting options and easy setup, Nightwave can seamlessly integrate with major brand MFDs via the analog video output, displaying clear color digital night vision.

Get Mobile with your Nightwave. The SIONYX Nightwave App allows your mobile device to remotely change the settings on your Nightwave. Availble on The App Store.

Specifications

CAMERA

SENSOR TYPE
XQE1350 BSI CMOS

RESOLUTION
1280 X 1024

FRAME RATE
60 HZ

HORIZONTAL FOV
44°

VISIBLE SPECTRUM
400-1200NM

FOCUS RANGE
10M TO INFINITY

LENS
16MM F/1.4

SYSTEM

VIDEO OUT
NTSC

VIDEO CONNECTION
SMA / BNC/ RCA

WIRELESS COMMUNICATIONS
WIFI + BLUETOOTH

POWER IN
12V DC

POWER CONNECTION
TINNED COPPER WIRE

ENVIRONMENTAL

INGRESS PROTECTION
IP67 WATER/DUST RESISTANT

SHOCK & VIBRATION
IEC60945 V15G , H:9G] , IK08

OPERATING TEMPERATURE
-20°C TO +50°C

STORAGE TEMPERATURE
-20°C TO +80°C

RANGE PERFORMANCE

DETECT MAN-SIZED OBJECT
150m Clear weather 1/4 moon

PHYSICAL

WEIGHT
870 G [1.9 LBS]

DIMENSIONS
127 X 127 X 152 MM [5 X 5 X 6 IN]

MOUNTING OPTIONS
TRIPOD OR RAMMOUNT

MATERIAL
MATERIAL UV RESISTANT POLYCARBONATE

What's in the Box:

• SIONYX Nightwave Ultra Low-Light Marine Camera (CRV-500C) - Gray Housing


• Analog Video Cable [5M]


• BNC to RCA adapter


• SMA to BNC adapter


• User Manual


• Mounting Hardware


• Mounting Gasket


• Mounting Template


• Power Fuse & Fuse Holder


• Digital Video Cable USB [3M]
