Raymarine Axiom Pro 9RVX MFD No Transducer Navionics Plus North America

Raymarine Axiom Pro 9RVX MFD No Transducer Navionics Plus North America

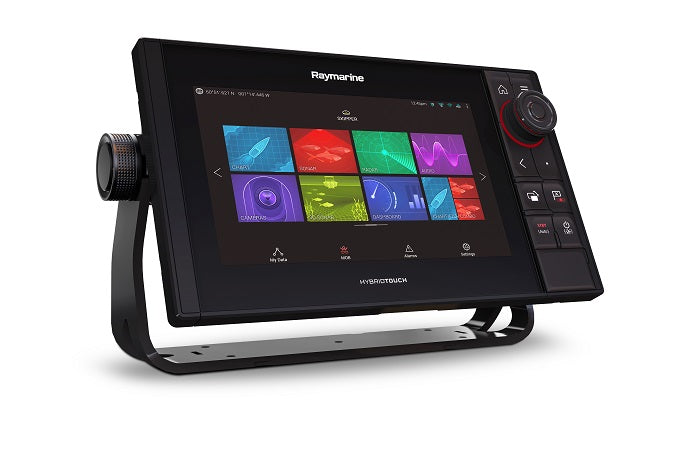

Raymarine Axiom Pro 9RVX 9" MFD With RealVision 3D and 1kW CHIRP, Navionics Plus North America

Model: E70371-00-NAG

• RealVision 3D


• True 1kW Sonar


• Sonar Scroll Back


• HybridTouch™


• Quad Core Processor


• Optical Bonding Technology & IPS Displays


• IP & Analog Video


• Clear Cruise™


• Quantum CHIRP, HD & SHD


• NMEA2000 & NMEA0183

Specifications
Display Size9" IPS Optically Bonded LCDDisplay Resolution1280 x 720 WXGADisplay TypeMultitouchBrightness1,200 nitsViewing AngleDegrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)MountingTop, Front, BracketWaterproof RatingIPX6 / IPX7Operating Tempminus 13deg F to 131deg F (-25deg C to +55deg C)Storage Tempminus 22deg F to 158deg F (-30deg C to +70deg C)SensorsSonar Type - Built-inRealVision 3D & 1kW CHIRP Sonar built inSonar Connections25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable.Sonar DepthCHIRP Sonar = 900 feet (974 m)
DownVision™ = 600 feet (183 m)External SonarYes - CP100, CP200, CP370, CP470, CP570 via RayNetRadarYes - Quantum, Digital, HD Color and Super HD Color RadarsAISYes - N2K compatibleGNSS / GPSBuilt-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288)Autopilot ControlYes - Evolution AutopilotThermal Night VisionYes - IP or AnalogueVideo / Camera1 x Analogue input (BNC) Up to 10 IP CamerasWeatherGRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America OnlyAudioN2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update]Digital SwitchingYes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update]Remote ControlRMK-10 (A80438) & RCU-3 (E62351)NetworkingEthernet2 x 10/100/1000 Mbits/ Network (RayNet)NMEA01831 Transmit / 2 ReceiveNMEA20001 x NMEA2000 port (DeviceNet microC)SeaTalkNGRequires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box)USB1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)Wi-FiWiFi - 802.11 a / b / g / nBlueToothBluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update]NavigationCartographyLighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update]Waypoint/Routes/Tracks (Wpts/Rts/Trk)10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk ptsMEMORYInternal16GB Solid State16GB Solid State2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)Input Voltage12V and 24V DC (8 V to 32 DC)Input Draw ~20WDimensions11.9" x 6.85" x 2.56" (300 x 174 x 65 mm)
What's in the Box:

• Axiom Pro 9RVX


• RayNet (F) to Raynet (F) Cable — 2M (A62361)


• Trunnion Cover


• Trunnion Knobs


• Trunnion Bracket


• Suncover (A80534)


• Power / Video / NMEA0183 Cable - Straight, 1.5M (R62379)


• Micro-C DeviceNet (F) to STNG (F) Cable - 1M (A06075)


• Panel Seal Gasket


• Bezel Pieces and Home / Menu Button


• Mounting Fixings


• Quick Start Guide


• Warranty Card


• Navionics Plus North America Charts


• Raymarine window decal
