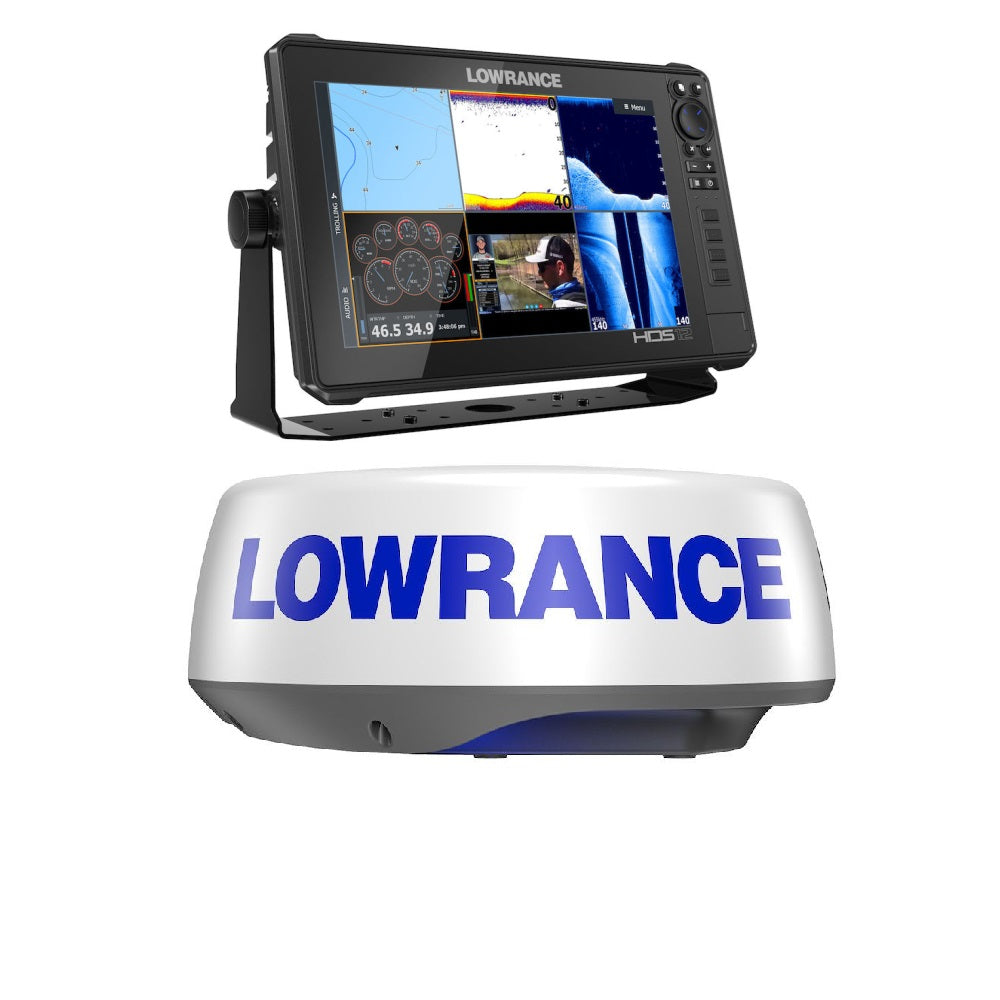

Lowrance HDS12 Live Radar Bundle with Halo 20+ Active Imaging 3In1 Transducer

Lowrance HDS12 Live Radar Bundle with Halo 20+ Active Imaging 3In1 Transducer

Lowrance HDS-12 Live MFD Radar Bundles with Active Imaging™ 3-in-1 (CHIRP/SideScan/DownScan)

Model: 000-16301-01

• Active Imaging™ 3-in-1 (CHIRP/SideScan/DownScan)


• LiveSight™ real-time sonar compatible


• Smartphone notifications


• C-MAP Genesis Live onscreen mapping


• StructureScan® 3D with Active Imaging enhancements


• High-performance quad-core processor


• FishReveal Smart Target View


• Full high-definition HDS SolarMAX™ HD multi-touch screen with the widest range of viewing angles — viewable even through polarized sunglasses


• Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000-plus lakes


• C-MAP Easy Routing, Navionics Autorouting capability


• Dual-Channel CHIRP — dual sonar-range coverage from the same transducer


• Live Network Sonar — cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers


• Wireless and Bluetooth® connectivity


• Heat Map feature allows anglers to see trends in water temperature changes to quickly target key fishing areas


• Enhanced Surface Clarity lets you see more fish targets near the surface


• Quick Access Control Bar provides one—touch access to system controls


• Built-in CHIRP and Broadband Sounder


• SmartSteer™ control for Xi5 Trolling Motor and Outboard Pilot


• Radar and SonicHub®2 audio server connectivity


• Radar and SonicHub®2 audio server connectivity


• Optional mapping upgrades include C-MAP, Navionics® and more


• Halo 20+ Radar

The Lowrance HDS-12 LIVE with Active Imaging 3-1 Transducer offers the best collection of innovative sonar features available, including Active Imaging™, StructureScan® 3D with Active Imaging, FishReveal™ and LiveSight™ sonar — plus exciting functionality like C-MAP® Genesis Live mapping and LiveCast™ smartphone integration.

Full high-definition SolarMAX™ HD multi-touch screen - Preloaded C-MAP® US Enhanced mapping. Compatible with Active Imaging™, StructureScan® 3D with Active Imaging and LiveSight™ real-time sonar. Includes wireless connectivity, Ethernet, NMEA 2000®, LiveCast™ smartphone Integration + ultimate integration capability. Includes Active Imaging 3-in-1 Transducer. Year after year, more fishing tour pros use HDS than all other fishfinder brands combined. HDS LIVE is poised to carry on that tradition behind premium performance and the best collection of innovative sonar features available — from new Active Imaging™ and StructureScan® 3D with Active Imaging to FishReveal™ and LiveSight™ real-time sonar — you will experience a new level of fishfinding performance with HDS LIVE. Navigating to your favorite fishing spot or finding a new one has never been easier, behind the best suite of navigation features ever built into the HDS Live display -- including preloaded C-MAP® US Enhanced mapping with 1-foot contours on 4,000-plus lakes, C-MAP® Easy Routing, Navionics® Autorouting and C-MAP Genesis Live mapping. HDS LIVE also simplifies your time on the water with onscreen text messages and call notifications, as well as LiveCast™ smartphone connection, which allows you to display video, Google Maps and fishing data on your fishfinder display.

Specifications

Resolution
1280 x 800

Brightness
> 1200 nits

Type
12" IPS

Touch Screen
Multi-Touch

Viewing Angle
80° top/bottom, 80° left/right

Supply Voltage
12 V DC (10 - 17 V DC min - max)

Power Consumption - MAX
49.68 W (3.6A at 13.8 V DC)

Recommended Fuse
5 A

Operating Temp Range
-15°C to +55°C (5°F to 131°F)

Storage Temp Range
-20°C to +60°C (4°F to 140°F)

Waterproof Rating
IPX6 and IPX7

NMEA 2000
1 port (Micro-C)

NMEA 0183
1 port (In Power Cable)

Ethernet
2 ports

2 ports
1 port

Analog Video In
1 port (optional cable)

USB
1 port (USB-A 5V DC, 1.5A)

Card Slots
2 slots microSD

Wireless
Built-in 802.11 b/g/n

Bluetooth
Bluetooth 4.0 with support for Bluetooth Classic

What's in the Box:

• HDS12 Live MFD


• ActiveImaging™ 3-IN-1 Transducer w/ 7.6m (25ft) cable


• Lowrance Power/0183 Cable


• HDS-12 LIVE/PRO Bracket and Knobs


• HDS-12 LIVE/PRO Suncover


• HDS connector cover


• Halo 20+ Radar Dome


• 5m Cable for HALO Dome Radar / Nemesis™ (16.5 ft)


• RJ45 F to 5pin Ethernet Adapter - 1.5m
