Humminbird XPT-9-HW-T Portable Transducer

Humminbird XPT-9-HW-T Portable Transducer

Humminbird XPT-9-HW-T Portable

Model: 710278-1

• This accessory is compatible with the following Humminbird products: HELIX 5 CHIRP G2 — GPS-equipped models only, HELIX 7 CHIRP G2/G3 — GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N — All models, HELIX 8 CHIRP G3N — All models, HELIX 9 CHIRP G2N/G3N — All models, HELIX 10 CHIRP G2N/G3N — All models, HELIX 12 CHIRP G2N/G3N — All models, ICE HELIX CHIRP G2 — All models (In Open Water Mode).


• Side Imaging™ and Down Imaging™ units can support the XPT 9 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.


• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz


• Dual Spectrum CHIRP Max Depth: 1200ft (365m)

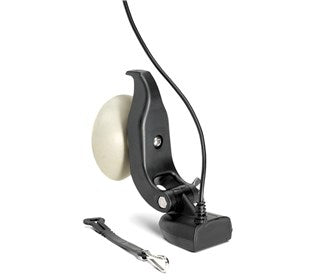

Portable Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Suction cup mount adheres to smooth surface hulls for easy installation. Includes all required mounting hardware, built-in temperature sensor and 20’ cable. Not recommended for high speeds.

Specifications
Mount TypePortableSonar TypeDual SpectrumCurrent ModelsHELIX 5, HELIX 7, HELIX 8, HELIX 9, HELIX 10, HELIX 12, ICE HELIX
