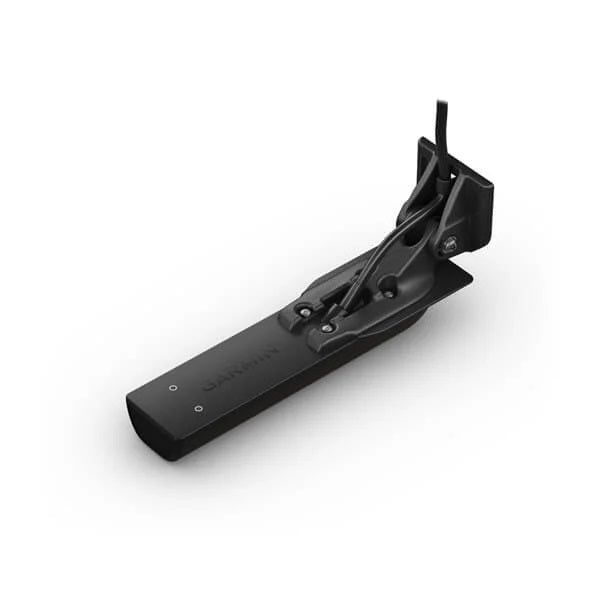

Garmin GT56UHD-TM Transom Mount Transducer

Garmin GT56UHD-TM Transom Mount Transducer

Model: 010-13073-00

• See everything below and around your boat with Ultra High-Definition scanning sonar.


• High wide CHIRP traditional sonar delivers target separation like no other.


• Multiple sonar frequencies have you covered — no matter what depth you’re fishing.


• See targets and structure in bright, vivid color.


• Mount this transducer your way — transom or trolling motor.

This all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar and more, so you can spend more time catching fish.

Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element.

See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.

Experience remarkably clear target separation and definition up to 800’ below your boat.

Use the perfect frequency for the waters you’re fishing. This transducer delivers 455 kHz, 800 kHz and 1,000 kHz for top performances at all depths.

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Everyone’s setup is different. That’s why we’ve included transom and trolling motor mounting hardware.

Specifications
FREQUENCYTraditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)POWERTraditional 350 W; ClearVü/SideVü 500 WBEAMWIDTHTraditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHzMAXIMUM DEPTHTraditional: 800 ft freshwater; ClearVü: 400 ft; SideVü: 500 ftDEPTH/SPEED/TEMPERATUREDepth and temperatureNUMBER OF PINS12CABLE LENGTH25 ftSUPPORTED DEADRISE/TRANSOM ANGLES0°-70° degree transom
