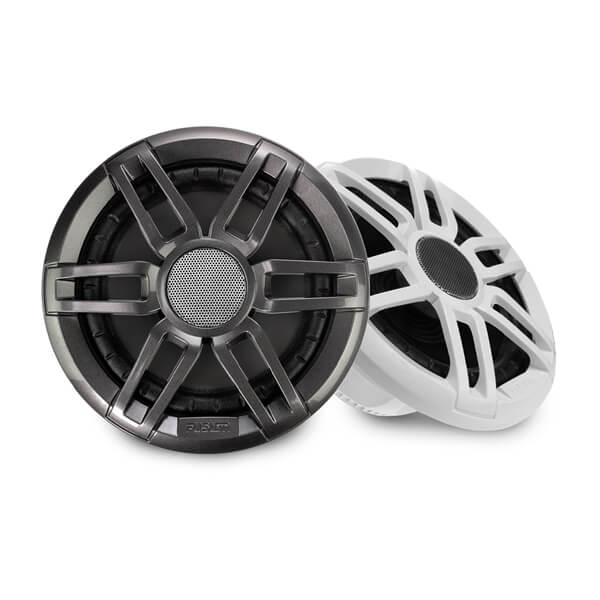

Fusion XS-F77SPGW 7.7" Speaker With Sport Grille

Fusion XS-F77SPGW 7.7" Speaker With Sport Grille

Fusion XS-F77SPGW 7.7" Speaker Pair with Sports Grille

Model: 010-02197-01

• Optimized Full Range Speaker: The XS Series speakers are acoustically optimized for performance in the marine environment, by combining optimized speaker drivers and tweeters to produce quality sound at all volumes.


• True-Marine™ Designed and Engineered: Extensively tested to perform in the harsh marine environment, the XS Series carry an IP65 weatherproof rating along with True-Marine accreditation.


• Two Grille Options Supplied: Enjoy the freedom to choose the finish to suit your vessel, with both Sport White and Sport Black grilles supplied in the box.

Continuing to set the benchmark for marine audio entertainment, Fusion’s new XS Series speakers feature their trademark quality audio reproduction and enhanced marine aesthetics at a mid-range price point. Optimized for use in the marine environment, and built for performance, these stylish speakers are designed to produce consistently high quality audio at all volume levels, season after season.

With an IP65 weatherproof rating, True-Marine™ accreditation and an industry-leading 3-year warranty, you can enjoy peace of mind that your XS speakers are built to last on your boat.

Specifications
Speaker Size7.7"Peak Power240 WattsRMS Power Rating60 WattsEfficiency (1W/1M)92dbFrequency Response70 Hz-18 kHzNominal Impedance4 ohmsRecommended Amplifier Power (RMS)25-200 W/ChTweeter TypeAluminum DomeCone / Surround MaterialPolypropylene with cloth surroundMounting Diameter Clearance6.38" (162 mm)Mounting Depth Clearance3.03" (77 mm)Optimum Enclosure Volume (Sealed enclosure, fully filled with absorption material) 0.35 cubic ft (10 L) 8LOperating Temperature Range0 to 50°C (32 to 122°F)Storage Temperature Range-20 to 70°C (-4 to 158°F)Water and Dust Resistance (IPX rating)IP65Warranty3 years
What's in the Box:

• One pair of XS-F77SPGW speakers


• 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1"))


• Speaker grilles (1pr Sport white/ 1pr Sport black)


• Documentation
