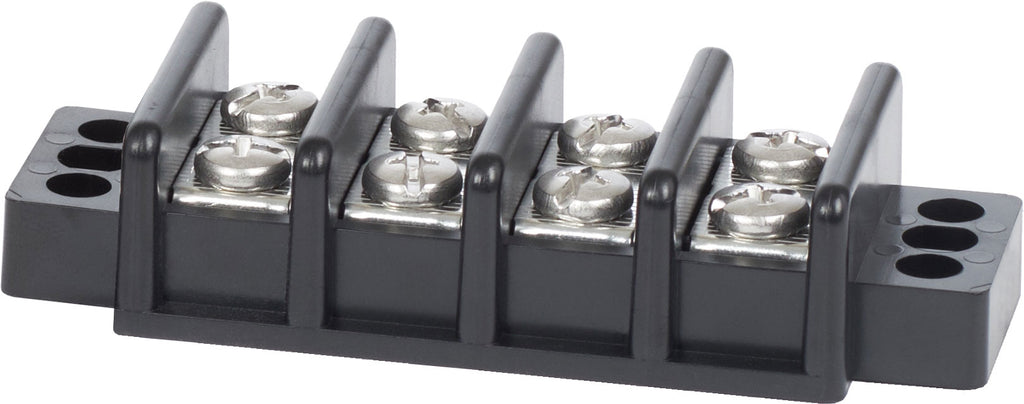

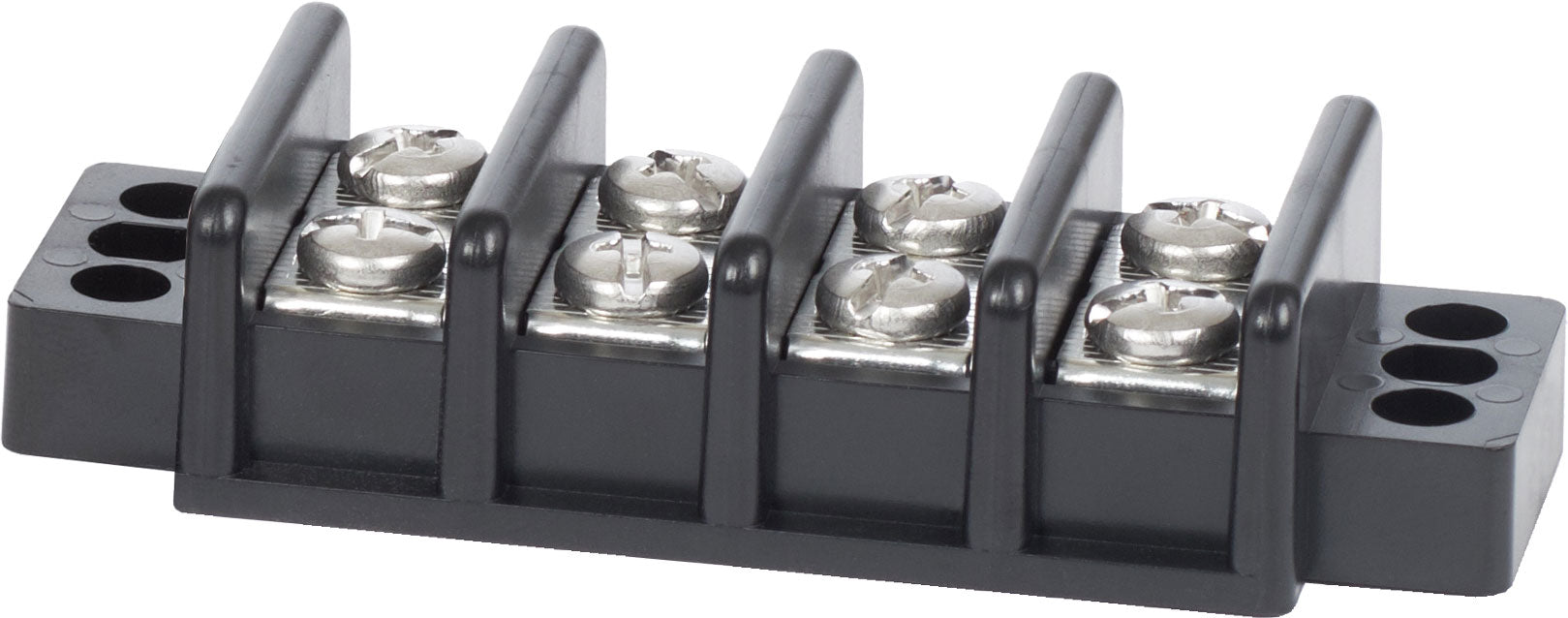

Blue Sea Terminal Block 30A 4 Circuit
Blue Sea Systems Terminal Block 30A - 4 Circuit
Model: 2504-BSS
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
SpecificationsCircuits4Length3.25in (82.55 mm)Maximum Voltage600V AC/DCContinuous Rating30ABase MaterialUL 94 V0, PCBus MaterialNickel-Plated BrassMounting Screw#10 [M5]Screw MaterialStainless SteelScrew Terminal Torque10 in-lb (1.13 Nm)Terminal ScrewsM4Wire Terminal Size#8 [M4]
