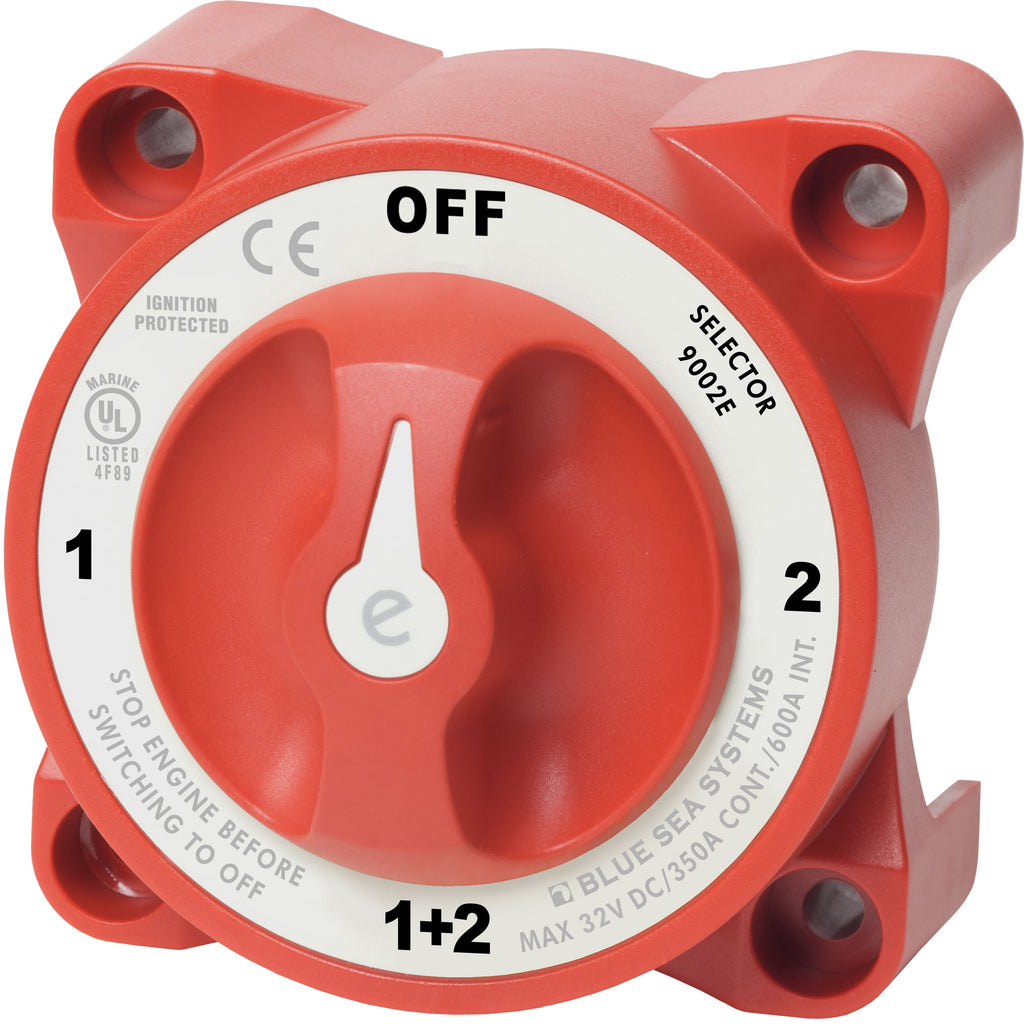

Blue Sea Systems e-Series Selector Battery Switch with AFD

Model: 9002E-BSS

• 350 Amps continuous rating for inboard gasoline or diesel engines.


• Tin-plated copper studs for maximum conductivity and corrosion resistance


• Accepts up to 4/0 AWG battery cables


• Studs accepts 3/8" (M10) ring terminals


• 7/8" (22mm) stud length accepts multiple cable terminals


• Blue Sea Systems one-piece terminal stud design never loosens over time


• Fits most Perko and Guest low amperage battery switch hole patterns


• Case design allows surface or rear panel mounting


• Tactile indicator conveys knob position by feel


• Waterproof — rated IP66 from water projected in powerful jets


• Ignition protected—safe for installation aboard gasoline powered boats


• Make-before-break contact design allows switching without power interruption


• Includes AFD (Alternator Field Disconnect)

Switches isolated battery banks to all loads or combines battery banks to all loads

Specifications
Switch TypeSelector 4 PositionColorRedSwitch Positions4Battery CombineYesAlternator Field DisconnectYesMaximum Voltage32V DCTerminal Stud Torque140 in-lb (15.82 Nm)Continuous Rating350AIntermittent Rating600A (5 min)Cranking Rating 30 sec1200A per circuitBattery Inputs2Cable Clearance For 4/0 AWG Cables1.10in (27.94 mm)Cable Size to Meet Ratings4/0 AWG (120mm )Mounting HolesAccept 1/4" (M6) ScrewStud MaterialTinned CopperTerminal Stud Size3/8" - 16 (M10)
