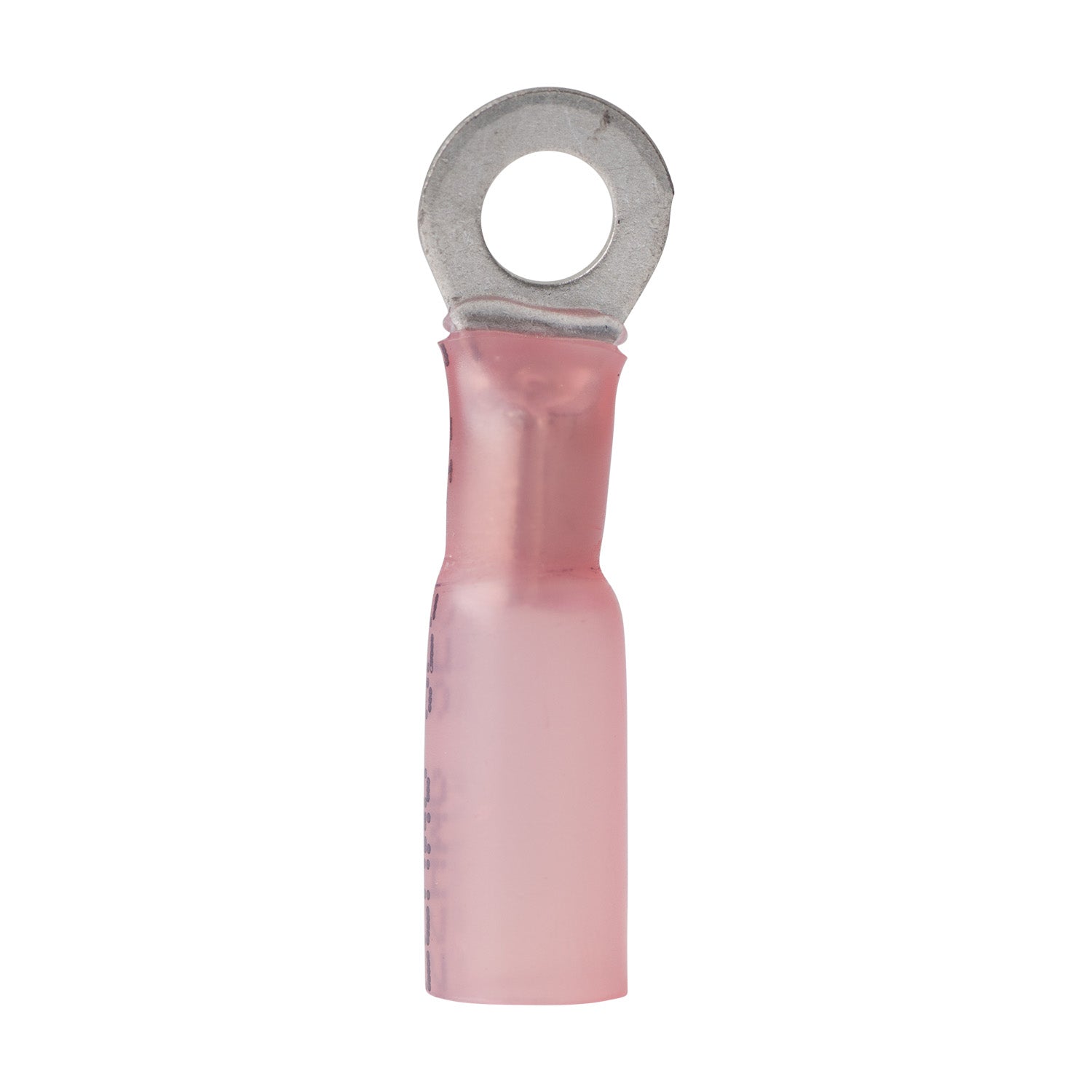

Ancor 22-18 #8 Ring Terminal Heat Shrink Red 100 Pack
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size.
- Shrinks at 257° F/125° C.
- Operating temperature range 40° C to 110° C.
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
Wire Range mm Screw Size Qty/Pkg Part No 12-10 3-5 #10 100 312399 12-10 3-5 #8 100 312299 12-10 3-5 3/8 100 312699 12-10 3-5 5/16 100 312599 12-10 3-5 1/4 100 312499 16 - 14 1-2 1/4 100 311499 16 - 14 1-2 5/16 100 311599 16 - 14 1-2 3/8 100 311699 16 - 14 1-2 #8 100 311299 16 - 14 1-2 #10 100 311399 22 - 18 0.3-0.8 #10 100 310399 22 - 18 0.3-0.8 #8 100 310299 22 - 18 0.3-0.8 3/8 100 310699 22 - 18 0.3-0.8 6.4 100 310499
